We are Manufacturer, Supplier, Exporter of Hydraulic Toe Jacks / Machine Lift ( HTJ ) and our set up is situated in Belgaum, Karnataka, India |
| |

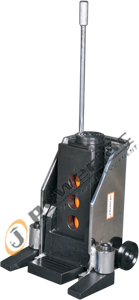

Hydraulic Toe Jacks / Machine Lift ( HTJ )
|
| |
| Capacity : 5-20 tons Stroke : 150 mm Working Pr.: 700 bar (Max.) |
| |
|
|
|
FEATURES / BENEFITS
• High strength, Heat treated alloy steel body for better life
• Hard chrome plated ram to resist scoring and corrosion
• Single acting load return. Precise machined body for smooth operation.
• Wiper to arrest ingress of foreign particles
• Easy adjustable toe fixing positions for different heights and strokes.
• Grooved toe to avoid load slippage.
• Custom strokes available on request.
• High pressure long life seals. QCC with Plastic dust cap. Aluminium Dust Cap on Request.
• Advantage to use single or multiple jack with common pump.
• Adjustable legs for extra grip. Castor wheels for easy mobility in new version.
• Port size 3/8th inch NPT. |
| |
| Application : These can be used in multiple jacking system by help of single hand pump. They find applications for lifting of heavy machineries, transformers, structural equipment & Oil Rigging. |
| |
MODEL |
CAPACITY |
Toe Clearance |
STROKE |
Toe Height at Max. Position |
Total Body Max.
Height |
APPROX WEIGHT |
|
TONES |
MM |
MM |
MM |
MM |
KG |
HTJ 5 |
5 |
20 |
150 |
320 |
320 |
25 |
HTJ 10 |
10 |
25 |
150 |
355 |
355 |
40 |
HTJ 20 |
20 |
40 |
150 |
385 |
380 |
65 |
|
| |
|
|
|
|
 |
 |
 |
 |
|
|
