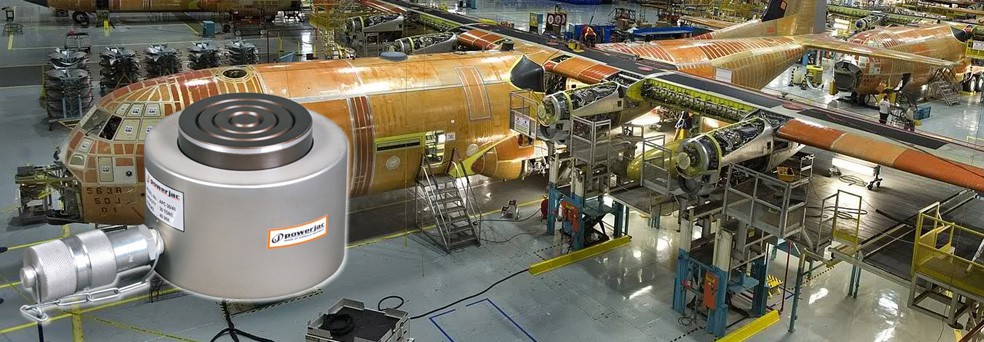

Ultra Low Height Threaded Ram Pancake Jacks ( PCT Series )
|
| |
| Capacity :10-200 tons, Stroke : 20-30 mm, Working Pr.: 700 bar |
| |
|
|
|
Model |
Capacity |
Closed HT. |
Stroke 'S' |
Ram Dia 'RD' |
Outer Dia 'D' |
Oil Volume |
Approx Weight |
Suitable Hand Pump |
|
Tons |
MM |
MM |
MM |
MM |
C.C. |
KG. |
|
PCT 50/30 |
50 |
115 |
30 |
100 |
145 |
192 |
13.5 |
PHP 200/2 |
PCT 100/30 |
100 |
130 |
30 |
140 |
185 |
475 |
22.5 |
PHP 400/3N |
PCT 150/30 |
150 |
150 |
30 |
170 |
225 |
697 |
41.5 |
PHP 400/3N |
PCT 200/40 |
200 |
170 |
40 |
200 |
270 |
1281 |
60.5 |
PHP 500/6 |
PCT 250/40 |
250 |
180 |
40 |
220 |
295 |
1548 |
76.5 |
PHP 500/6 |
PCT 300/40 |
300 |
190 |
40 |
240 |
325 |
1894 |
103.5 |
PHP 500/6 |
PCT 400/20 |
400 |
200 |
40 |
270 |
365 |
2324 |
142.0 |
PHP 500/6 |
PCT 500/40 |
500 |
215 |
40 |
300 |
415 |
2865 |
199.5 |
PHP 500/6 |
|
| |
These jacks are designed specifically where space is a constarint. Ideally used where no other cylinders will fit for lifting, lowering, spreading of structures, bridges, heavy machinery etc. |
| |
Features / Benefits :
• Compact, Pancake design, heat treated alloy steel bosy for better life.
• Hard Chrome plated ram to resist scoring & corrosion.
• Single acting, load return, Plain Ram.
• Grooved ram ends does't require lifting saddle.
• High Pressure long life seals.
• Port Size 1/4" and 3/8" NPT
• QCC with plastic dust cap. Aluminium Dust Cap on Request. |
| |
| Application : |
These jacks are designed specifically where space is a constrait.
Ideally used where no other cylinders wil fit for lifting, lowering, spreding of stuctures, bridges, heavy machinery etc... |
| |
| ! To reduce the closed height of the jack, there is no seal box. One has to monitor the lifting stroke since there would be a chance of ram coming out of the cylinder which would result in a accident and failure of jack. |
|
| |
| |
|
 |
 |
 |
 |
|
